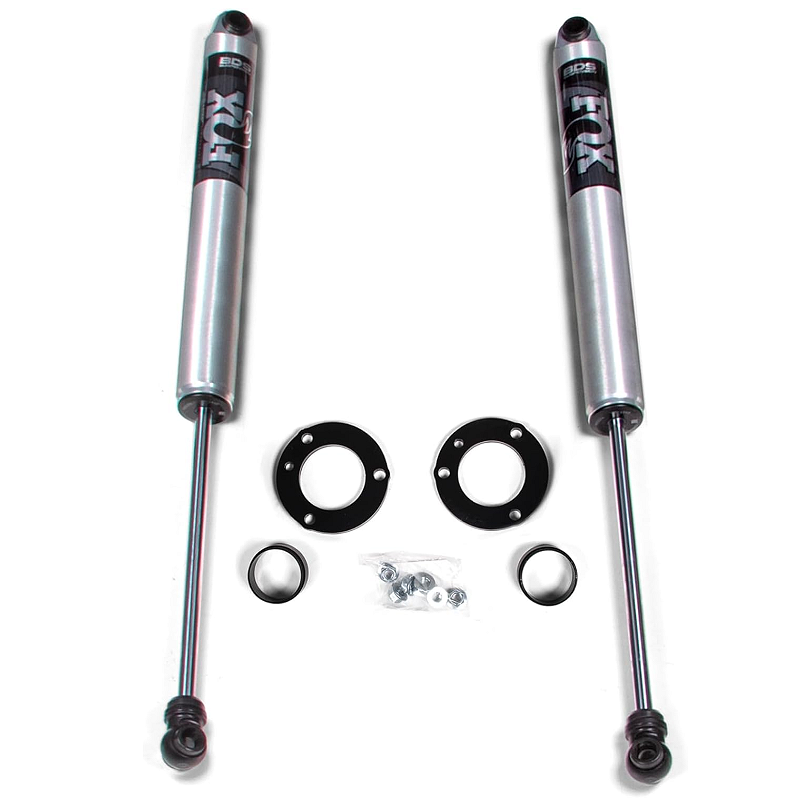

BDS 2-Inch Leveling Kit For 2019-2023 Ford Ranger

Overview

Take your 2019-2023 Ford Ranger truck to the next level with a 3.5-inch lift kit with FOX 2.5 Coil-Over shocks from BDS. These kits feature proprietary FOX 2.5 coil-over shocks designed specifically to bolt-on performance for increase travel and the ability to soak up the roughest terrain along with smooth on-road comfort. This kit includes everything necessary to set your Ford Ranger up right with clearance for up to 33" tires. To ensure proper drivetrain geometry the front differential is repositioned using relocation brackets. These brackets correct CV axle angle while allowing the use of the factory front skid plates. Also supplied for the front end are a pair of performance upper control arms (UCAs) designed for improved strength and suspension travel. Up front, the lift kit includes steel top mount strut spacers, pre-load spacers, differential relocation brackets and tubular upper control arms. In the rear, this kit includes heavy duty lift shackles and custom-tuned matching FOX shocks.

DSC Adjustment

FOX 2.5 coil-overs are available standard with DSC (dual speed compression) adjustment to tune the high-speed and low-speed compression damping allowing for added control on-road with the ability to easily dial in more aggressive damping offroad. Tuning is a simple twist of the two clearly defined knobs with immediate feedback to dial it in for any terrain.

HD Upper Control Arms (UCAs)

Built for strength, performance and increased travel, these upper control arms are ready to bolt-in with most leveled/lifted trucks. They use 1.5" OD x .120-wall tubular construction with an indexed ball joint cup to correct the ball joint positioning allowing additional down travel and camber adjustment. At the frame mounting ends are durometer-specific rubber bushings for maintenance-free operation while at the other end a quality greaseable ball joints for smooth, quiet operation and superior durability. Arms are finished in a durable black powder coat with a billet aluminum dust cap ready for installation right out of the box. OE Knuckle Type Ford is producing two knuckle/control arm configurations in 2019-2023 model Rangers. Cast steel knuckle equipped models have different ball joints than models equipped with Aluminum knuckles. Be sure to verify which factory knuckle your truck has before ordering by referencing our help images when customizing your kit.

Rear Shock Option

FOX 2.0 Performance Series

• 2-inch Impact extruded aluminum body
• Internal floating piston (IFP) monotube design
• CNC machined 6061-T6 aluminum mounting ends
• Large 5/8-inch hard chrome plated heat-treated alloy steel shaft
• Race-developed high-flow piston design
• Application-specific valving to maximize performance
• Long-lasting clear anodized finish

FOX 2.5 Performance Elite Series

• Increased off-road capabilities
• Easily adjust your shock for terrain, load and speed
• 2.5-inch Impact extruded aluminum body
• Massive 7/8-inch hard chrome plated heat-treated alloy steel shaft
• External reservoir design separates shock oil from the high-pressure nitrogen
• DSC - Dual Speed Compression Adjuster comes standard
• Fully serviceable for a lifetime of use
• 1-year Manufacturer's Warranty

Features & Benefits

• FOX 2.5 coil-over shocks designed specifically for increase travel and the ability to soak up the roughest terrain
• DSC adjuster adds remarkable versatility and precise tuning with a simple twist of either two adjuster knobs
• High clearance crossmembers improve strength and offroad capability
• Heavy duty steering knuckles to correct steering geometry and maintain ESC system compatibility
• Top mounted strut spacers to provide lift and install easily
• Differential skid plate for improved offroad protection
• Rear lift blocks and u-bolts to lift and level the stance

Recommended Tires & Wheels

(Trimming may be required)

• 285 / 65 with 18 x 9 and 5.75 in. Backspace
• 305 / 55 with 20 x 9 and 5 in. Backspace



This Kit Fits:

2019-2023 Ford Ranger Pickup 2WD and 4WD This Truxxx 1.5? front leveling kit compatible with ALL 2019 – 2023 Ford Ranger Pickup 2wd/4wd models – including the Tremor package. This Truxxx 101020 leveling kit gives the owner of the Ford Ranger what they really want – room for bigger tires! The leveling kit also fixes the nose down stance, and you get more ground clearance! 31.5? tall tires can be fitted to 2wd trucks and 4×4’s can fit up to 32.5? tall tires when using stock offset style wheels. All of our kits are a direct bolt in and require no modifications to your vehicle. These kits retain the stock ride quality of your truck. Every Truxxx leveling kit is made with USA and Canadian Mill Certified Steel and laser cut to precision tolerances using OEM drawings. Each kit is welded using the latest US Made welders and triple checked to ensure proper fitment. This kit contains two front strut spacers, all the required hardware and detailed instructions and complete alignment specs. Recommended installation time is approx. 2.5 hours + an alignment and a 31.5-32.5” tall tire (285/60R18) are commonly used on a stock style offset • Designed to retain the stock ride quality! • Aftermarket shocks are NOT required! • Alignment specs included! • ***ALWAYS test fit wheels and tires AFTER lift install ~ test fit your tires and wheels after install as every tire and wheel manufacturer uses a different measuring tape! ***
