Auxbeam 4.5″ 128W LED Driving Pod Lights XP Ultra Series
Features:
TRUSTED DRIVING VISION: Employ top-notch led chips. With a powerful 128W output, they deliver 15200 lumens. Features a trusted brighter long-lasting light, and a clearer, wider, and further visual area.

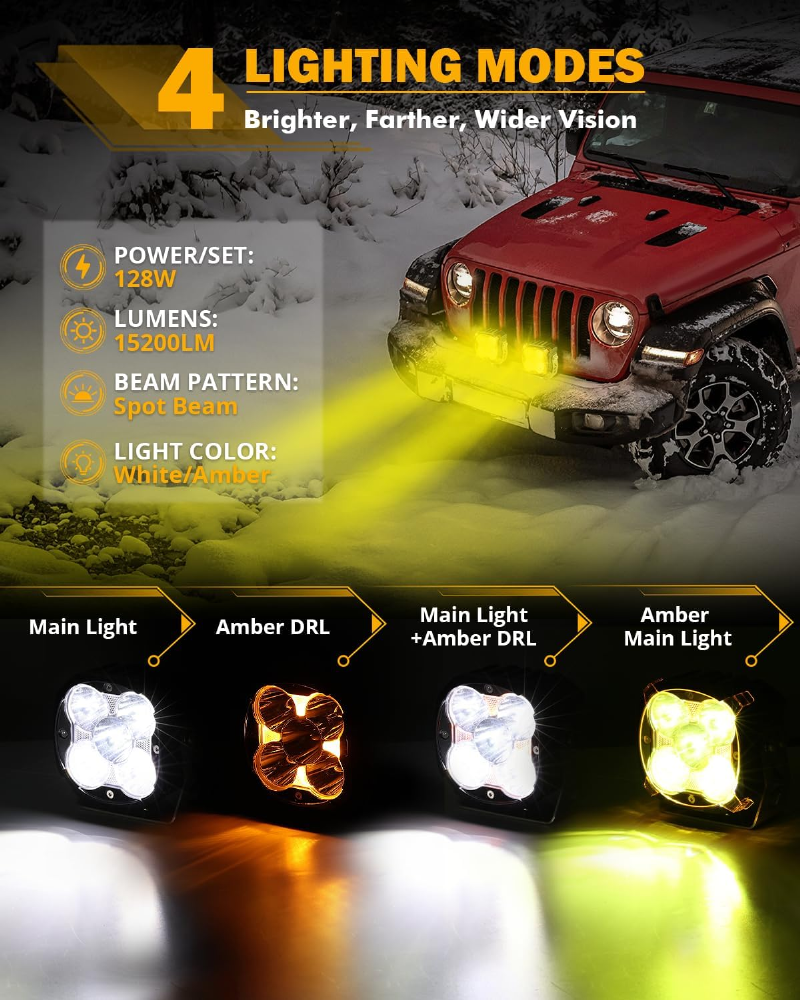

MULTI-MODEL INNOVATIVE DESIGN: In addition to white lights for daily driving, we’ve included amber DRL. With an Amber DRL that ensures visibility without glare during nighttime driving. We also offer yellow cover for a customizable, high-penetration color temperature, ideal for low-visibility conditions.

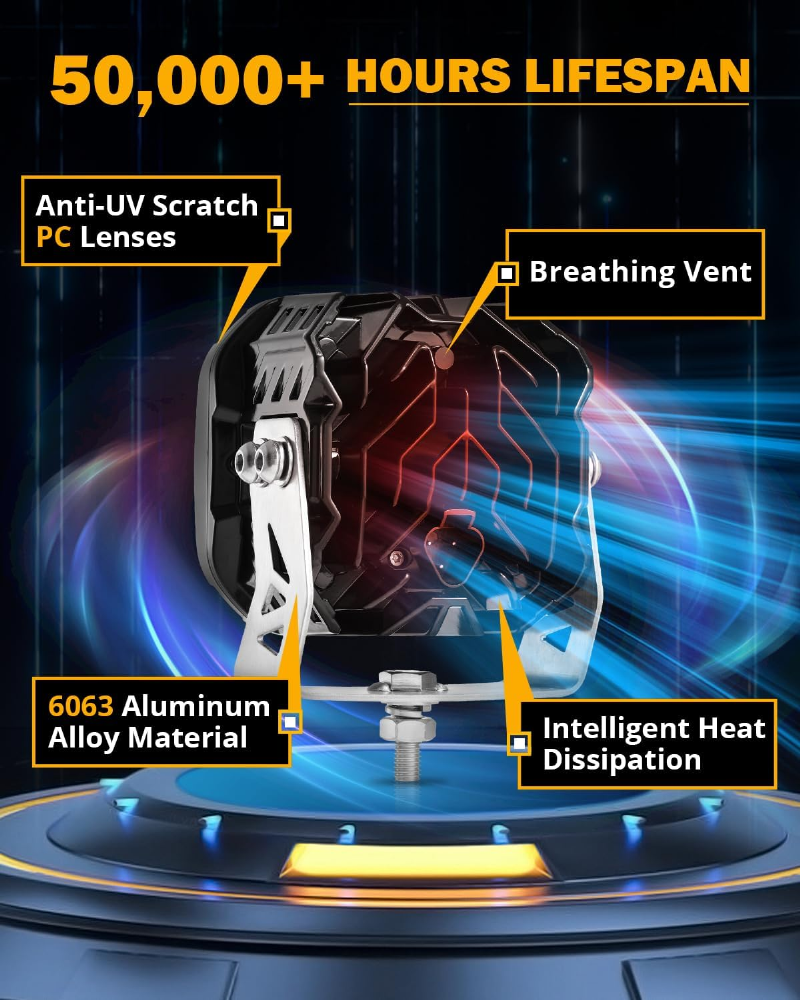

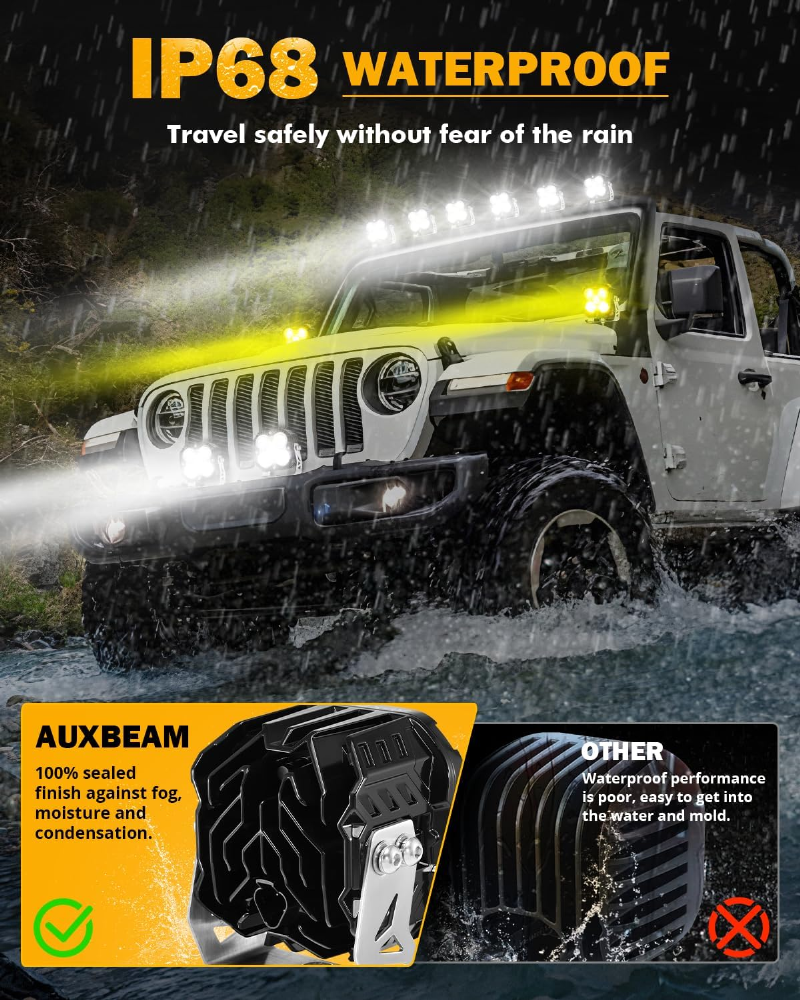

HIGH QUALITY DURABILITY: We meticulously select materials, using hardened PC lenses and aluminum alloy housings that offer anti-scratch and anti-corrosion properties, along with efficient heat dissipation. Additionally, our strips undergo rigorous testing before leaving the factory, are triple waterproof, meet international IP68 certification standards, and boast a service life of over 50,000 hours.

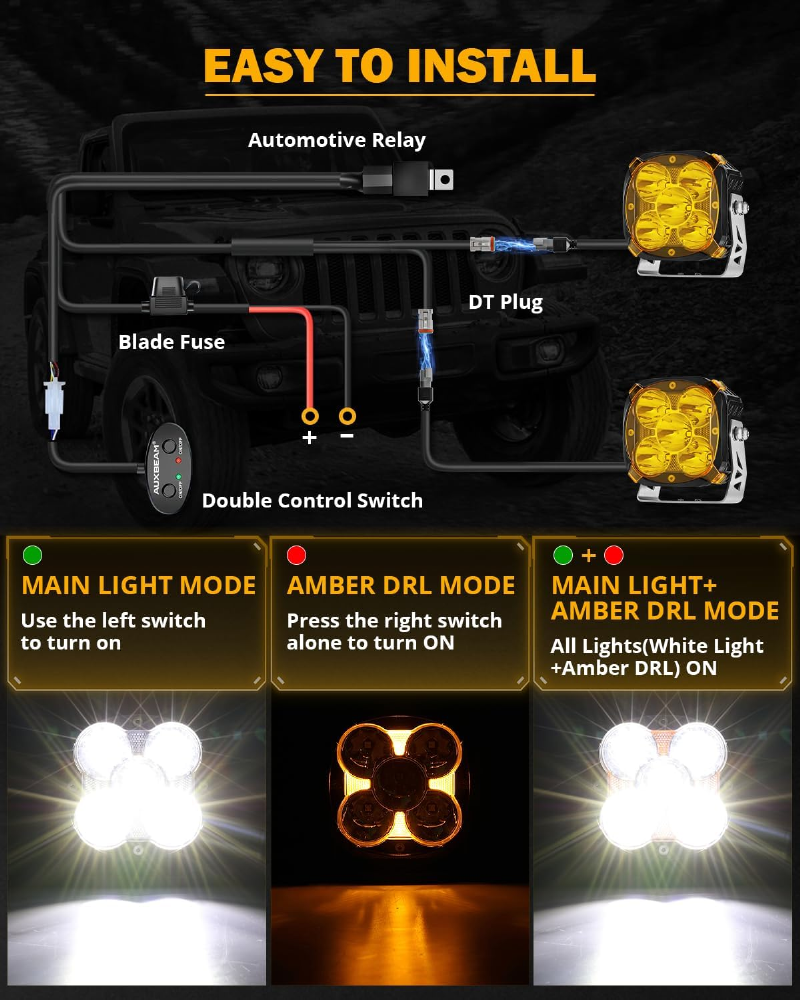

QUICK INSTALLATION: Easy to connect and install with the included DT connector harness wiring kit, eliminating the hassle of redundant wiring. Durable wiring can meet your needs to install the lights anywhere in the vehicle.
WIDE APPLICATION: The led driving light fits for almost all Off Road Vehicles, ATVs, UTVs, SUVs, Construction Vehicles, Farm Vehicles, Trucks, Motorcycles, Buses, Pick-ups, marine, Boat, etc..
Specification:
| Beam Pattern | Spot | Flood | Combo |
| Beam Degree | 20° | 70° | 20°+ 120° |

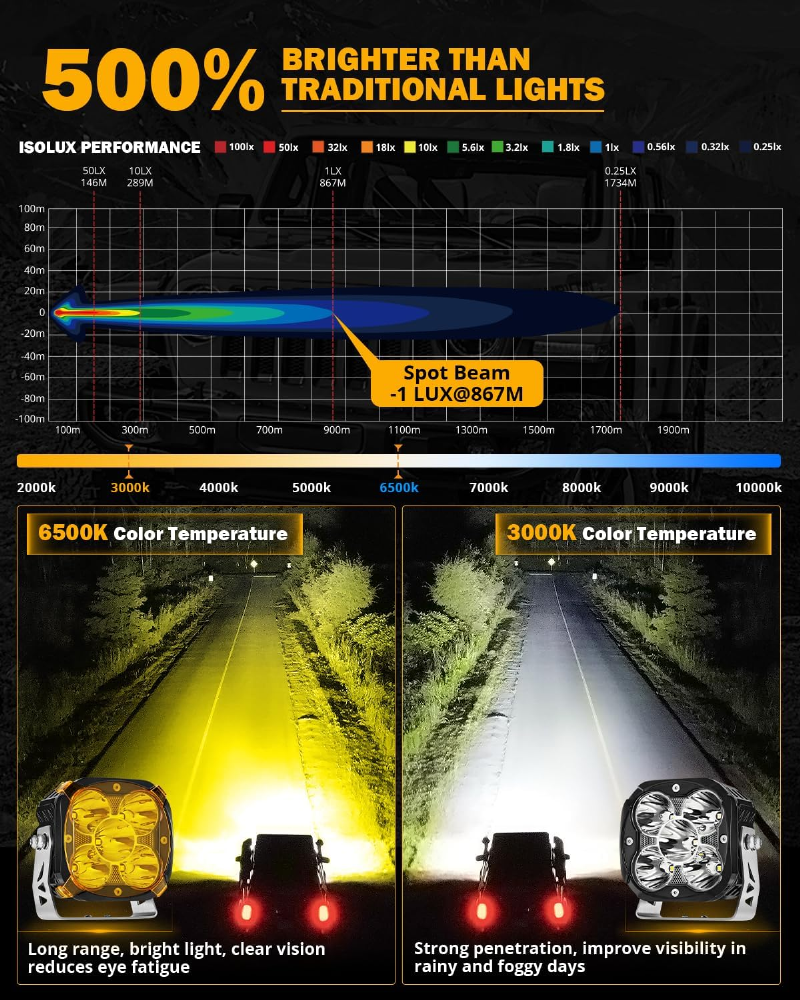

| Lighting Distance | 1 LUX@867M | 1 LUX@342M | 1 LUX@696M |

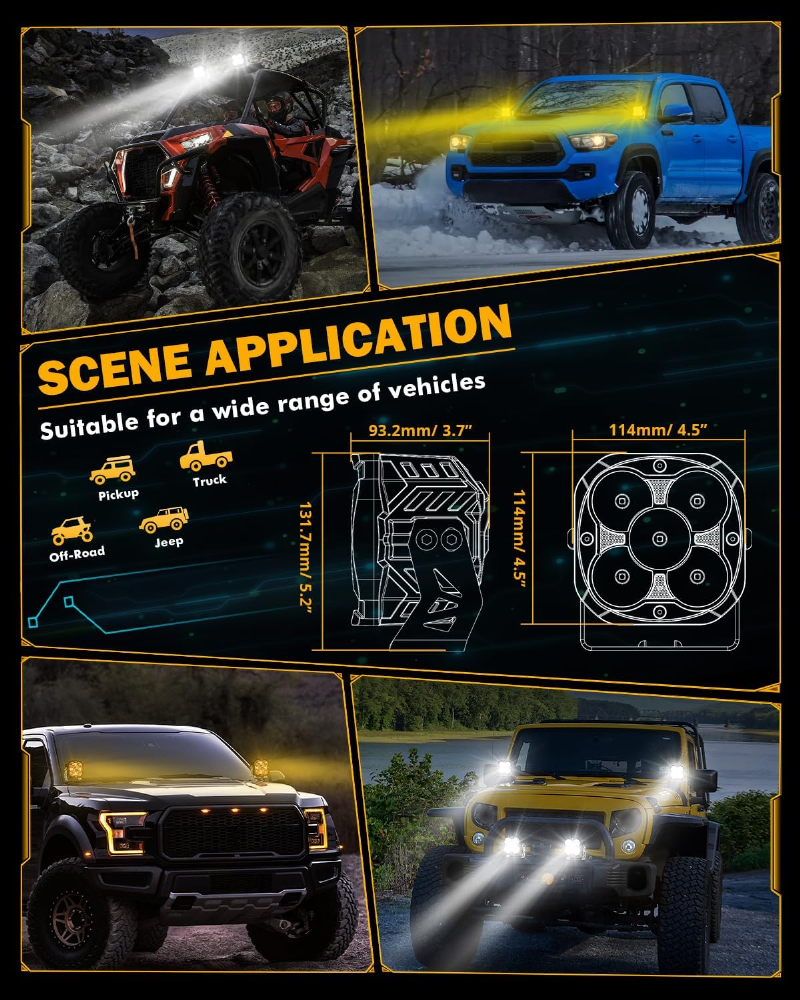

Size: 4.5 Inch
Power/Set: [64W*2(Spotlights 60W+Amber DRL 4W)]=128W
Total Lumens: 15200LM?14400LM+Amber DRL 800LM?
Housing Material: Aluminum Alloy
Lens Material: PC
Lamp Beads Model(Each): Luminus SST40*5(12W/pcs)+2835 SMD 4W
Color Temperature: 6500K/3000K Main Light+3000K Amber DRL
Light Cover?Amber
With EMC/EMI?Yes
Fit Model: Universal
Lifetime: 50000+ hours
Waterproof Rate: IP68
Working Voltage: 12V-24V(Wiring harness Relay is 12V Only?can be replaced with 24V)

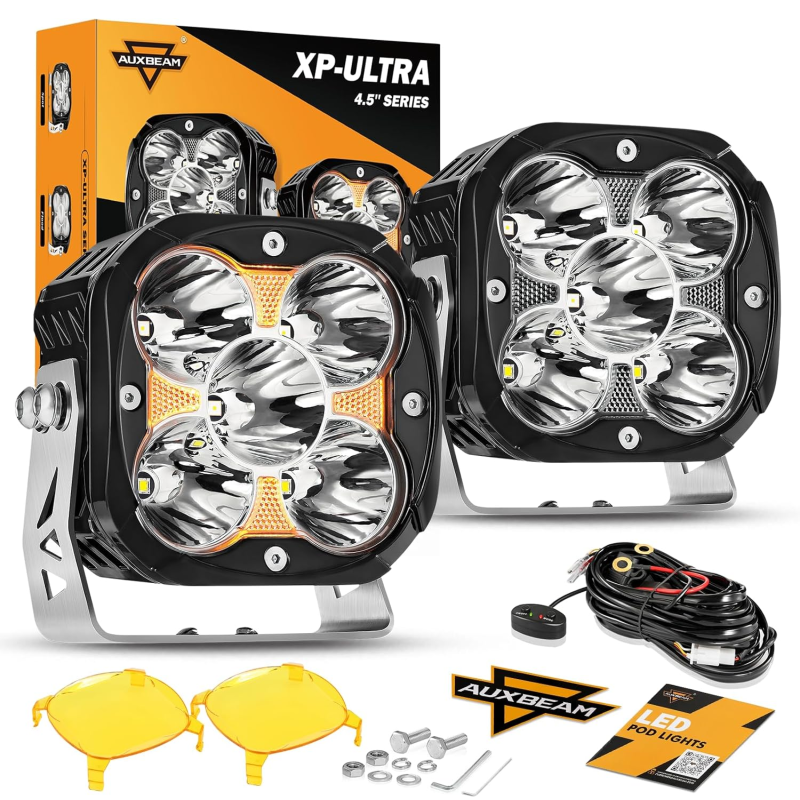

Packing Included:
2 X LED Pod Lights?With DT Plug?
2 X Light Covers?Amber?
1 X Wiring Harness?With DT Plug?
1 X Srew Accessories
